AC Switchgear (Indoor)

Quantum

Safe, advanced, compact switchgear compliant with the latest IEC standards.

Overview

Quantum expands the BRUSH Switchgear portfolio of medium-voltage indoor switchgear with its deserved reputation for great reliability and low maintenance. It is an ideal solution for when product diversity within electricity networks is required.

Maintaining all of the benefits of our award-winning magnetic actuator, Quantum delivers a technology refresh whilst retaining the simplicity of air insulation and vacuum technology in a fixed-pattern design. It offers further space saving benefits with its integrated busbar CT design and top-mounted busbar earthing facility.

Key benefits

Smaller equipment footprint
Custom solutions
Asset life extension
Lower total cost of ownership (TCO)
Proven design
Improved operator safety

Key features

Maintenance Free
Magnetic actuator with up to 50x fewer moving parts
Enhanced Safety
IAC – AFL internal arc protection
Improved Operator Safety
Fully interlocked front-access cable-test facility
Ease of Operation
3 position disconnector with integrated earthing circuit
Flexible Configuration
Expandable LV top box for more complex solutions

Resources

Datasheet
BRUSH Switchgear Quantum Datasheet
Download
ENGINEERING FOCUS

Fit and forget technology

Award-winning, maintenance free magnetic actuator technology with the patented single coil magnetic actuator mechanism based on a solenoid plunger, held in the tripped or closed position by permanent magnets

Technical specifications

PropertyRating
Rated Normal CurrentUp to 2000A
Rated Voltage12kV
Rated Frequency50Hz
Rated BIL75/95kV pk
Rated Power Frequency Withstand28/38kV 1 mim
Rated Short-Time Withstand Current25kA RMS for 3 secs
Rated Peak Making Current62.5kA
Internal Arc Compliance25kA for 1 sec
Rated Short Circuit Breaking Current25kA
Degree of ProtectionIP4X
Single Capacitor Bank Breaking Current400A
Circuit Breaker ClassificationE2, S2, C2
Auxiliary Operating Supply110DC
Busbars Normal CurrentUp to 2000A
Typical Weight500-700kg
Ambient Air Temperature-5˚C to +40˚C
Relative Humidity<95%
Altitude<1000m
Mechanical Endurance10,000 operations

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Transport

Utilities

Switchgear services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

On 11 July 2023, BRUSH Group decided to simplify its AC switchgear.
This portfolio simplification means that our longstanding Eclipse product will be phased out.
For more information, contact us.

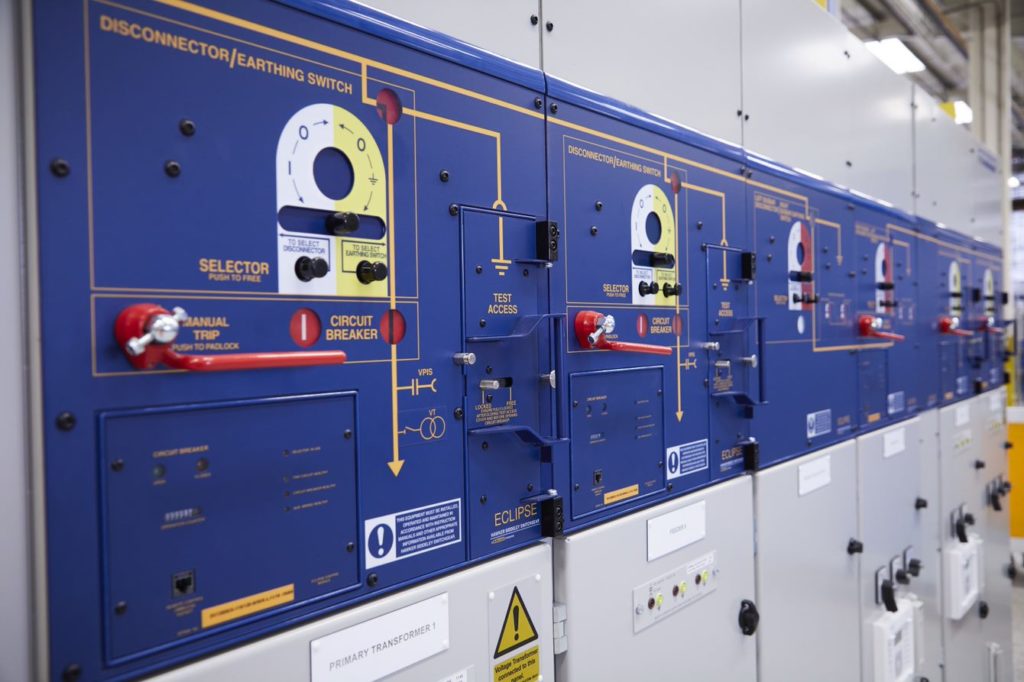

AC Switchgear (Indoor)

Eclipse

Highly trusted, air insulated indoor switchgear for primary and secondary power distribution applications

Overview

Appreciated throughout the distribution network, the Eclipse currently holds a leading market position for indoor 11kV switchgear.

The fixed pattern design has the simplicity of air insulation and, with the low parts count (the total parts count has been reduced by a factor of x20 and the number of moving parts by a factor of x50), is more compact (500mm wide) than equivalent rated GIS equipment.

The Eclipse boasts superior operator safety with a fully interlocked disconnector selector mechanism, animated front panel mimic and a front access cable test facility, eliminating the need for any intrusive access to high-voltage compartments.

The Eclipse is certified to IEC62271 and available as a pre-engineered solution in ratings up to 25kA, 2000A. Alternatively, it can be fully engineered to customer requirements.

Key benefits

Smaller equipment footprint
Custom solutions
Asset life extension
Proven design
Lower total cost of ownership (TCO)
Improved operator safety

Key features

Maintenance Free
Magnetic actuator with up to 50x fewer moving parts
Enhanced Safety
IAC – AFL internal arc protection
Improved Operator Safety
Fully interlocked front-access cable-test facility
Ease of Operation
3 position disconnector with integrated earthing circuit
Flexible Configuration
Expandable LV top box for more complex solutions

Resources

Datasheet
BRUSH Switchgear Eclipse Datasheet
Download
ENGINEERING FOCUS

Fit and forget technology

Award-winning, maintenance free magnetic actuator technology with the patented single coil magnetic actuator mechanism based on a solenoid plunger, held in the tripped or closed position by permanent magnets

Technical specifications

PropertyRating
Rated Normal Current630A/1250A/2000A
Rated Voltage12kV
Rated Frequency50Hz
Rated BIL75/95kV pk
Rated Power Frequency Withstand28/38kV 1 min
Rated Short-Time Withstand Current20/25kA rms 3 secs
Rated Peak Making Current50kA/62.5kA
Internal Arc Compliance20kA 1 sec
Rated Short Circuit Breaking Current20kA/25kA
Degree of ProtectionIP4X
Single Capacitor Bank Breaking Current400A/1250A
Circuit Breaker ClassificationE2, S2, C2
Auxiliary Operating Supply125/110/48/30V dc
Busbars Normal Current1250A, 2000A
Typical Weight500-650kg
Ambient Air Temperature-5˚C to +40˚C
Relative Humidity<95%
Altitude<1000m
Mechanical Endurance10,000 operations

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Transport

Utilities

Switchgear services

We provide lifecycle management and support from initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning.

On 11 July 2023, BRUSH Group decided to simplify its AC switchgear.
This portfolio simplification means that our longstanding Eclipse product will be phased out.
For more information, contact us.

Transformers

Legacy Tapchangers

We hold extensive records of legacy products supplied by BRUSH, Fuller, Hawker Siddeley and ATL.

Overview

We hold extensive records of legacy products supplied by BRUSH, Fuller, Hawker Siddeley and ATL. We are therefore uniquely placed to offer full support for spares, service and refurbishment. We can support:

  • BRUSH type HSR, HSRD
  • Fuller/Hawker Siddeley type EH, H, HD, HS, AN, AG, ASD, AMD
  • ATL type AT, ATV, AE

Our specialist services include:

  • Spare parts ranging from gaskets to mechanism/divertor and selector spares
  • Full factory refurbishment and testing
  • Where a tapchanger is beyond economical repair we are specialists in the retro-fitting of new-for-old. We carry out a design and feasibility study and offer a turnkey package, replacing a failed unit for a modern equivalent.

Key benefits

Asset life extension
Asset maintenance & upgrades
Reduced equipment downtime
Custom solutions
System decarbonisation

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
Transformers

On-Load Tap Changers: AT and ATV ranges

BRUSH continues to supply the amalgamated Associated Tapchangers range. Based on high-speed resister transition, this three-phase system provides a bolt-on solution for voltages up to 66kV on line end, and 132kV on neutral end and nominal rated current up to 300A.

Overview

The BRUSH range of single compartment units with high-speed resistor transition is designed for three-phase systems with voltages up to 66kV line end or 132kV neutral end and nominal rated current of 300A, 400A for linear regulation.

AT & ATV tap changers have a maximum of 17 tapping positions (16 steps) 15 possible for linear regulation and 33 tapping positions (32 steps) for reversing of course/fine regulation.

AT OLTCs are capable of reverse flow at full power. The OLTCs are a flange-mounted tapchangers where the oil in the switch compartment is kept separate at all times from the oil in the main transformer.

Manufactured in accordance with IEC 60214 and also complies with many other national and international standards.

Key benefits

Installation & commissioning support
Reversed powerflow
Asset maintenance & upgrades
Lower cost of ownership

Technical Specifications

AT & ATV Tapchangers
Compact
Linear, reversing or coarse/fine versions
Suitable for 52kV, star or delta windings
400A version (linear only)
Suitable for 145kV star winding (neutral end only)
Single-phase version available
Vertically-mounted option also available
Bi-directional power flow
High speed resistor on-load selector switch
Ease of maintenance
Low oil content
Up to 17 positions (linear) or 33 positions (reverse or coarse/fine)
Fully automatic or manual operation
Can be mounted horizontally (AT) or vertically (ATV)

Applications

Whether your requirements call for a DNO approved transformer or a bespoke solution, BRUSH covers the vast majority of applications.

Industry

Infrastructure

Oil & Gas

Renewables

Utilities

Resources

Brochure
BRUSH Transformers Brochure
Download
Whitepaper
BRUSH Engineered Solutions Tapping into 33kV transformer assets – Vacutap VBO
Download

Legacy Tap Changers

We hold extensive records of legacy products supplied by BRUSH, Fuller, Hawker Siddeley and ATL. We are therefore uniquely placed to offer full support for spares, service and refurbishment. We can support:

  • BRUSH type HSR, HSRD
  • Fuller/Hawker Siddeley type EH, H, HD, HS, AN, AG, ASD, AMD
  • ATL type AT and ATV
Find out more

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Transformers

Special Transformers and Reactors

BRUSH Transformers has an extensive tried and tested trajectory supplying application specific special designs and current series limiting reactors using fluid filled technology.

Overview

Using our vast experience and in-depth design and manufacturing history, we supply special transformers and reactors for a wide range of sectors, including:

  • Motor unit transformers for industrial applications and petrochemical plants
  • Rectifier transformers for traction systems
  • Traction supply transformers
  • Auto-transformers
  • Trackside booster transformers
  • Furnace transformers
  • Liquid filled series limiting reactors

Options

Our transformers can be designed to many national and international specifications, and can be tailored to our client’s individual requirements. Specifications include:

  • ENATS
  • IEC
  • ANSI
  • Shell DEP
  • Aramco
  • Rail

Key benefits

Installation & commissioning support
Custom solutions
System decarbonisation
High efficiency
Reactive power contribution

Key Features

Compact transformer design
Reduces overall substation footprint enabling significant savings in civil costs
High efficiency
Transformers based on EU EcoDesign Directive EU 548 and Tier 2 efficiencies
UK manufacture
Full assembly and testing at our Loughborough factory

Technical Specifications

Special TransformersReactors
High efficiency transformers based on EU EcoDesign Directive EU 548 and Tier 2 efficienciesProven design technology
Alternative cooling fluids including Midel and FR3 for environmentally sensitive or urban sitesVoltage class up to 66 kV
Low noise level transformers with advanced core build technology and variable speed fan optionsThrough-put MVA up to 100 MVA
Designs are calculated for minimal partial discharge values through an optimised insulation structure that extends operational lifespanCopper or aluminum wound reactors
Condition monitoring options via fibre optic temperature sensors & gas detection systemsAir-core magnetically shielded reactors
Compact transformer design reduces overall substation footprint enabling significant savings in civil costsThree-phase coil mounted one above the other or horizontally to suit site layout
Cooling methods ranging from naturally cooled to directed-oil via pumps and forced-air via fans
Tap changing by on-load (bolt-on or in-tank) or off-circuit switching devices. Remote Tap changer control panels can also be supplied
Full range of accessories and protection devices available including digitally enabled options as well as condition monitoring equipment

Applications

Whether your requirements call for a DNO approved transformer or a bespoke solution, BRUSH covers the vast majority of applications.

Industry

Infrastructure

Oil & Gas

Renewables

Transport

Utilities

Transformer Services

We provide lifecycle management and support from initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
control & monitoring

Control & Protection Systems

GCPPs equipped with all the necessary excitation control and protection equipment required to enable optimal performance.

Overview

BRUSH provides customer Generator Control and Protection Panels (GCPPs), equipped with all the necessary excitation and protection equipment required to enable optimal performance and synchronisation of the generator, synchronous-condenser or motor.

This provides protection to the rotating equipment, main generator circuit breaker and the step-up transformer.

Our products are highly configurable and we can use a variety of digital communication protocols to suit site requirement, included IEC61850 and Modbus.

In addition, the GCPP’s can be configured for dual redundancy incorporating the latest protection relays, and can be designed to withstand seismic activity for operation in challenging environments

Key benefits

Asset life extension
Custom solutions

Resources

Technical Specifications

Technical Specifications
Comprehensive Multi-Function Generator Protection Relay
Various Options for Operator Console / Panel Mounted Human Machine Interface (HMI) / Panel PC
Options for Communications (Modbus TCP, Ethernet Global Data, IEC61850, DNP3 etc.)
SCADA or Turbine Control Remote Telemetry Unit (RTU)
Automatic Synchroniser and Check Synchroniser
Dead Bus Close Interlocking
Optional Manual Synchronising Scope and Controls
Instrumentation of key asset parameters
Rotating Diode Failure Monitoring
Rotor Ground Fault Alarm Indication
Many Power Supply / Uninterruptable Feed Options Available

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Utilities

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
control & monitoring

Excitation Systems

BRUSH offers a range of standard excitation systems and also bespoke systems designed to suit the customer’s needs.

Summary

BRUSH offers a range of standard excitation systems and also bespoke systems designed to suit the customer’s needs.

Standard Products

The PRISMIC® A3100 includes two fully featured independent controllers and two independent power circuits within a single 6U 19 inch enclosure, all available as removable cards (single channel option available).

The A3100 builds on previous experience and technologies from BRUSH, incorporating features such as integrated power system stabilizer, automatic synchronizer, R10 ground (earth) fault receiver, Ethernet and USB connectivity integrated into a single standard 19 inch rack package. With most connectors completely compatible with earlier BRUSH controllers the A3100 is an easy replacement of previous BRUSH AVRs such as the MAVR, MicroAVR, A30 and even the A32.

BRUSH can provide engineering expertise to help replace other OEM Brushless AVRs up to 20A rating with the A3100.

The PRISMIC® A32 excitation controller or automatic voltage regulator (AVR) includes two fully independent controllers and two independent power circuits. The PRISMIC® A32 is one of the first excitation controllers to provide features such as an integrated power system stabiliser, a colour TFT display and Ethernet connectivity. It is mounted within a single 6U 19 inch enclosure.

The PRISMIC® A12 excitation controller, designed to control the excitation of a brushless generator, uses the latest digital microcontroller technology to make it the most compact unit in the BRUSH range. The PRISMIC® A12 is provided on a mounting plate, complete with wiring loom and auxiliary equipment.

Static & Bespoke Excitation Systems

The PRISMIC® A50 provides stable voltage regulation with high reliability using advanced microprocessor and software technologies. Systems are available to satisfy generator excitation current ratings from under 20A to over 8000A.

Monitoring Systems

The PRISMIC® R10 rotor earth fault monitor (REFM) uses an electronic unit to detect a single earth fault and dispenses with the need for brushes and sliprings, resulting in enhanced reliability and reduced maintenance costs.

Power System Stabiliser

Power system stabiliser functionality is included within the latest BRUSH excitation controllers, however the T20 provides this functionality in a separate unit suitable to be used with simpler excitation controllers.

Key benefits

Asset maintenance & upgrades
Custom solutions
Installation & commissioning support
Improved cyber security

Applications

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Utilities

Resources

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
control & monitoring

Power Management Systems

Power Management Systems (PMS) are dedicated microsystems providing intelligent automation for industrial power grids.

Summary

The BRUSH PRISMIC® Power Management System is an extremely powerful and flexible electrical power system controller. More than that, it’s your guardian against outages and the ensuing disruption and cost. With its reputation for delivering a reliable and stable power supply whatever the industry or application PRISMIC® PMS sets the benchmark.

A wealth of experience within the power generation industry ensures BRUSH can provide an engineered solution to meet your termination requirements for both new build and retrofit generators.

Key benefits

Asset life extension
Asset maintenance & upgrades
Reduced equipment downtime
Custom solutions
System decarbonisation

Resources

Technical Specifications

Technical specifications
Intelligent load shedding (10ms)
Control of voltage, frequency, power, MVAR/ power factor
Generator set management (auto starting and stopping)
Load feeder inhibition
Load feeder reconnection
Controlled load reduction
Operator control via HMI
Data transfer to DCS/SCADA systems

Applications

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Utilities

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
Generators & Motor

Line & Neutral Cubicles

A wealth of experience within the power generation industry ensures BRUSH can provide an engineered solution to meet your termination requirements for both new build and retrofit generators.

Summary

BRUSH provides engineered solutions to meet your termination requirements for generators, synchronous-condensers and motors for both new build and retrofit applications.

With a rating range to 20kV and 10,000 Amps and certification of operation in flammable environments, BRUSH offers configurable cubicle designs for operation in the harshest of environments.

Our flexibility is demonstrated by offering connections that use multiple cables, cable bus, segregated phase bus bars or isolated phase bus bars which can be configured to interface with the top, bottom or side of the cubicle. BRUSH also offers combined Line and Neutral cubicles that save space for tight packages.

The cubicles free up space in the switchgear package, and incorporate surge arrestors and capacitors, plus have up to 4 current transformers and 2 voltage transformers per phase for accurate metering and enhanced protection.

  • Line Side Cubicles (LSC)
  • Neutral Side Cubicles (NSC)
  • Neutral Grounding Options

Key benefits

Custom solutions
Lower cost of ownership
Hazardous area certified – IECEx /ATEX
Proven design
Minimum 25 years design life

Technical Specifications

Key Features
Current range up to 10,000 A.
Voltage range up to 20 kV
Up to four current transformers per phase for metering and protection
Up to two voltage transformers per phase for metering and protection
Surge arrestors and capacitors
Star point connection in cubicle
Neutral earthing through a single phase transformer with a secondary loading resistor

Applications

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Utilities

Key Features

Generator stator/enclosure
Mounted or free-standing
Factory fitted prior to removal for shipment
reducing on-site time
Engineered solution
Ensuring complete compatibility with power system
Heading Needed
Connections using multiple cables, cable bus, segregated phase bus bars or isolated phase bus bars
Steel or aluminium construction
depending on rating
Fully compliant
with the relevant international and industry standard specifications, including IEC, IEEE, CSA, ATEX, ABS, DNV and Lloyds

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
Generators, Condensers & Motors

Synchronous Motors

BRUSH has extensive experience in the design, service and repair of a broad range of motors.  Regardless of the original equipment manufacturer BRUSH can provide a complete range of engineering services to support the customer’s needs.

Overview

Based on the extremely successful and reliable DAX generator range, the BRUSH MAX motor range can be fully customised to meet customer specifications.

As with our range of DAX generators, the typical operating benefits of the MAX motors are:

  • Low maintenance
  • High reliability
  • More than 30 years’ design life

Key benefits

Asset life extension
Asset maintenance & upgrades
Reduced equipment downtime
Custom solutions
System decarbonisation

Resources

Project Case Study

Synchronous Motors for Compressor Drives

The project, seen as one of the industry’s most successful development programmes, delivered on time and on budget.

Today the facility is operated by Norske Shell and delivers over 20% of the UK’s gas.

View Case Study

Technical Specifications

Shaft Power20MW up to 100MW
Poles2 pole
Voltage per windingUp to 15kV
Rated speedNormally 3000, 3500 or 3600 rpm, but to suit application
Speed range2,520 to 3,780 rpm
Torque Capacityconstant power from rated speed to maximum continuous speed
Design standardsIEC 60034, NEMA MG1
Motor protectionPurge and pressurised (Ex P) for:
IECEx Zone 2 IIB T3,
ATEX Zone Zone 2 Group II Category 3G,
Ingress Protection to IP56
Cooling systemClosed loop air to water (CACW or TEWAC)
Noise level85dB(a) at rated speed
ExcitationStatic or brushless 3 phase
Ambient temperatures-40 °C to 60 °C
Motor efficiency>98%

Applications

Industry

Infrastructure

Oil & Gas

Renewables

Transformer Services

From initial system analysis, to design, engineering, supply, installation, commissioning and upgrades of equipment through to repurposing or decommissioning. We provide lifecycle management and support.

PARTS

Strategic Parts Management

To protect against loss of revenue through unscheduled outages and ensure the reliable operation of capital equipment, we recommend a combination of OEM certified Operational Spares, Maintenance Spares, Strategic Spares and Commissioning Spares based on site configuration and site specific operational conditions.

Find out more
Man holding a ball of energy symbolising connections
CONTACT US

Speak to our team

BRUSH has a global reputation for service excellence and dedicated customer support. With a wealth of experience spanning almost 150 years and significant in-house knowledge and expertise, our commitment to excellence is backed by experience and knowledge.

Whether it’s the provision of parts, the delivery of service support in the field, at the customer’s premises or at our network of service workshops, our team of highly experienced engineers are on hand to support.

Contact us
